Flexographic Printing

AI Series
Flexo Press

2 to 8 printing colours. Web widths 500–2000 mm. Full servo gearless drive with ±0.1 mm registration on PE, PP, PET, BOPP, paper and non-woven substrates.

Max speed350 m/min

Colours2 – 8

Web width500–2000mm

Request a quote →

Select configuration

Choose your colour count & web width

Printing colours

Max web width

Model

AI-4C-800

Max speed

140–200 m/min

Registration

±0.15 mm

Drive System

Full Servo Gearless

Full specification — AI-4C-800

Specification	AI-4C-800
Printing Colours	4
Max Web Width	800mm
Max Printing Width	750mm
Repeat Length Range	190–1000mm
Max Mechanical Speed	200m/min
Registration Accuracy	±0.15mm
Drive System	Full Servo Gearless
Anilox Roller	Ceramic, 200–600 LPI
Max Unwind/Rewind Dia.	Φ600mm
Machine Weight	~3219kg
Dimensions (L×W×H)	3679×1839×2200mm

Complete range

All AI Series configurations

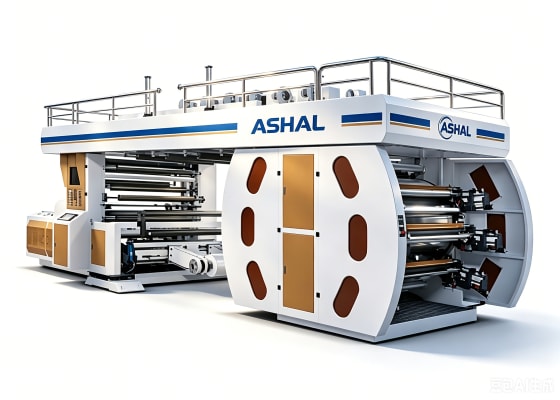

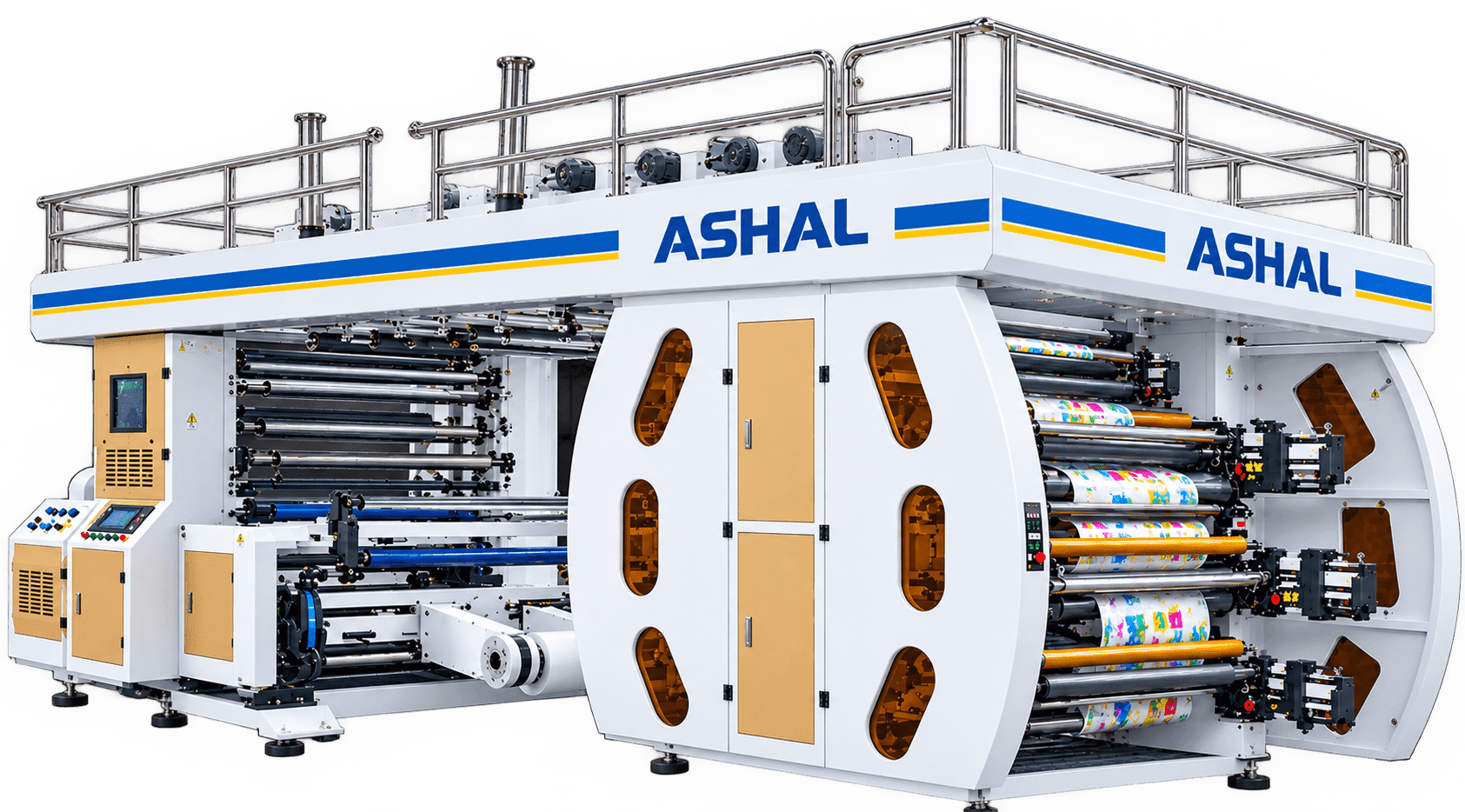

AI-2C · 2-colour

AI-2C Flexographic Printing Machine — 500 to 2000 mm

Entry-level 2-colour CI flexo press, 84–120 m/min, semi-servo drive.

AI-2C-500AI-2C-800AI-2C-1000AI-2C-1200AI-2C-1500AI-2C-1800AI-2C-2000

Specification	AI-2C-500	AI-2C-800	AI-2C-1000	AI-2C-1200	AI-2C-1500	AI-2C-1800	AI-2C-2000
Printing Colours	2	2	2	2	2	2	2
Max Web Width	500mm	800mm	1000mm	1200mm	1500mm	1800mm	2000mm
Max Printing Width	450mm	750mm	950mm	1150mm	1450mm	1750mm	1950mm
Repeat Length Range	190–800mm	190–1000mm	190–1000mm	190–1200mm	300–1200mm	300–1600mm	300–1600mm
Max Mechanical Speed	120m/min	120m/min	120m/min	120m/min	102m/min	102m/min	84m/min
Registration Accuracy	±0.2mm	±0.2mm	±0.2mm	±0.2mm	±0.2mm	±0.2mm	±0.2mm
Drive System	Variable Frequency / Semi-Servo	Variable Frequency / Semi-Servo	Variable Frequency / Semi-Servo	Variable Frequency / Semi-Servo	Variable Frequency / Semi-Servo	Variable Frequency / Semi-Servo	Variable Frequency / Semi-Servo
Anilox Roller	Ceramic, 200–600 LPI	Ceramic, 200–600 LPI	Ceramic, 200–600 LPI	Ceramic, 200–600 LPI	Ceramic, 200–600 LPI	Ceramic, 200–600 LPI	Ceramic, 200–600 LPI
Max Unwind/Rewind Dia.	Φ600mm	Φ600mm	Φ800mm	Φ800mm	Φ1000mm	Φ1000mm	Φ1200mm
Machine Weight	~1800kg	~2070kg	~2250kg	~2430kg	~3150kg	~3780kg	~4500kg
Dimensions (L×W×H)	2200×1600×2000mm	2530×1839×2000mm	2750×2000×2000mm	2970×2160×2000mm	3850×2800×2000mm	4620×3360×2000mm	5500×4000×2000mm

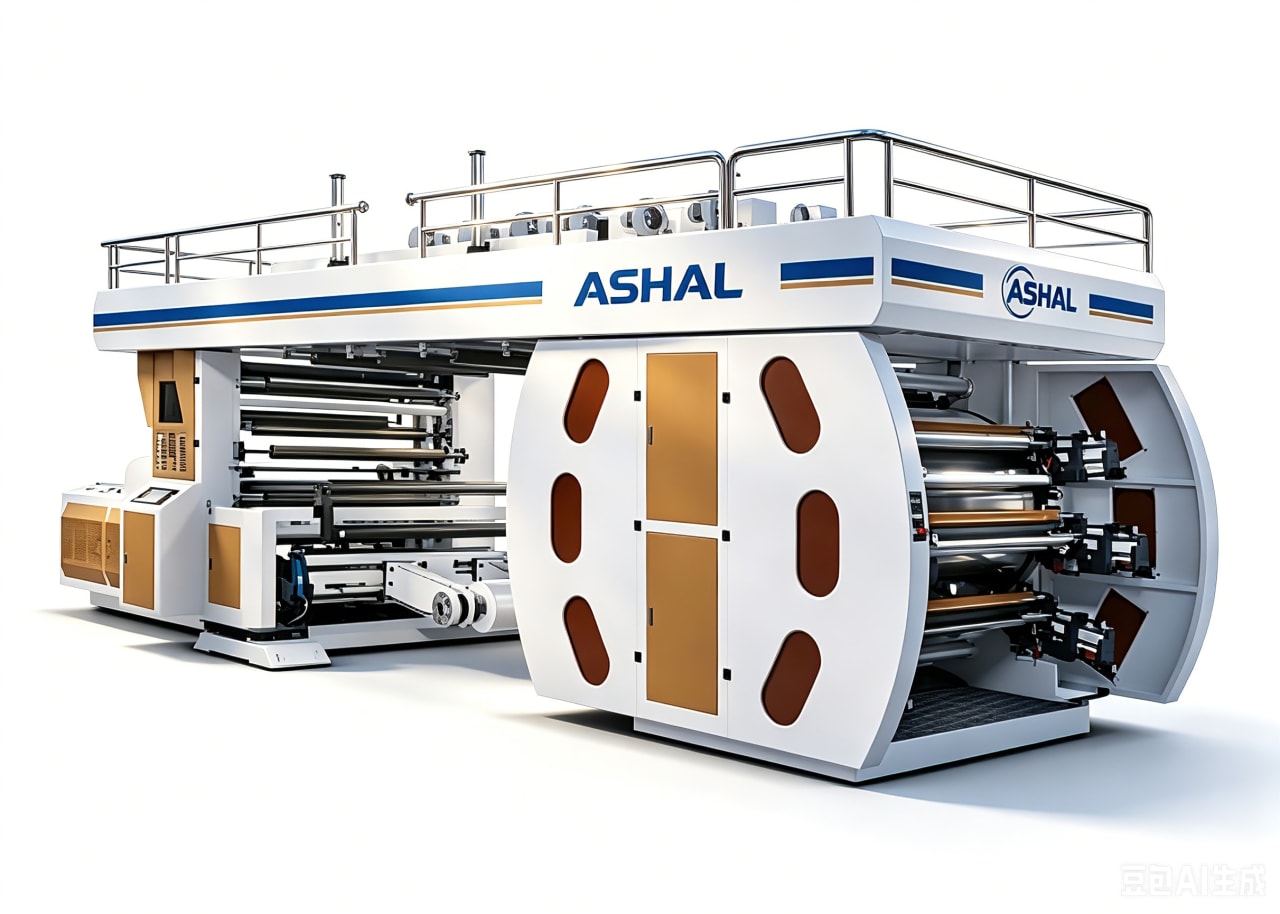

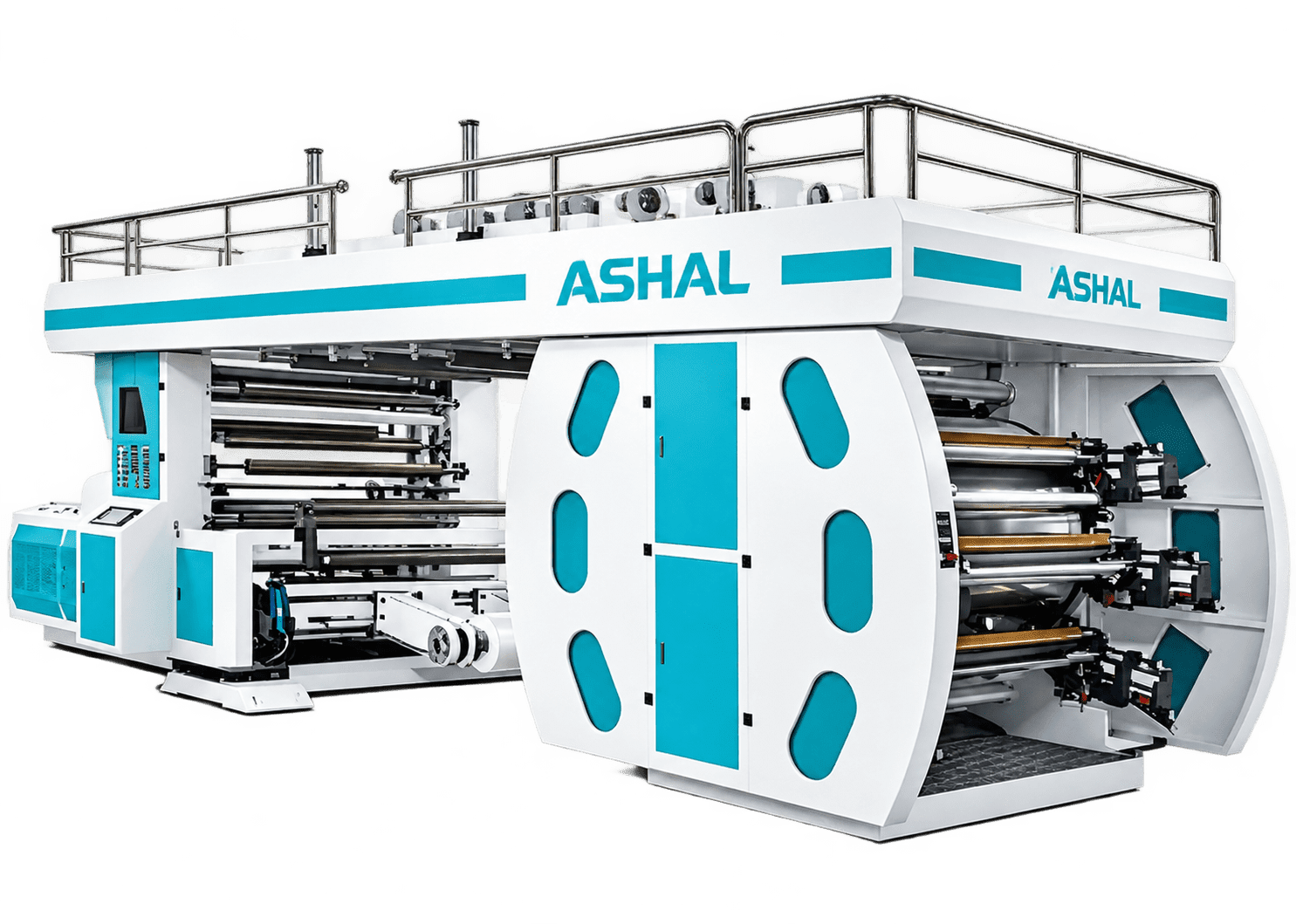

AI-4C · 4-colour

AI-4C Flexographic Printing Machine — 500 to 2000 mm

4-colour full servo gearless press, up to 200 m/min, ±0.15 mm registration.

AI-4C-500AI-4C-800AI-4C-1000AI-4C-1200AI-4C-1500AI-4C-1800AI-4C-2000

Specification	AI-4C-500	AI-4C-800	AI-4C-1000	AI-4C-1200	AI-4C-1500	AI-4C-1800	AI-4C-2000
Printing Colours	4	4	4	4	4	4	4
Max Web Width	500mm	800mm	1000mm	1200mm	1500mm	1800mm	2000mm
Max Printing Width	450mm	750mm	950mm	1150mm	1450mm	1750mm	1950mm
Repeat Length Range	190–800mm	190–1000mm	190–1000mm	190–1200mm	300–1200mm	300–1600mm	300–1600mm
Max Mechanical Speed	200m/min	200m/min	200m/min	200m/min	170m/min	170m/min	140m/min
Registration Accuracy	±0.15mm	±0.15mm	±0.15mm	±0.15mm	±0.15mm	±0.15mm	±0.15mm
Drive System	Full Servo Gearless	Full Servo Gearless	Full Servo Gearless	Full Servo Gearless	Full Servo Gearless	Full Servo Gearless	Full Servo Gearless
Anilox Roller	Ceramic, 200–600 LPI	Ceramic, 200–600 LPI	Ceramic, 200–600 LPI	Ceramic, 200–600 LPI	Ceramic, 200–600 LPI	Ceramic, 200–600 LPI	Ceramic, 200–600 LPI
Max Unwind/Rewind Dia.	Φ600mm	Φ600mm	Φ800mm	Φ800mm	Φ1000mm	Φ1000mm	Φ1200mm
Machine Weight	~2800kg	~3219kg	~3500kg	~3780kg	~4900kg	~5880kg	~7000kg
Dimensions (L×W×H)	3200×1600×2200mm	3679×1839×2200mm	4000×2000×2200mm	4320×2160×2200mm	5600×2800×2200mm	6720×3360×2200mm	8000×4000×2200mm

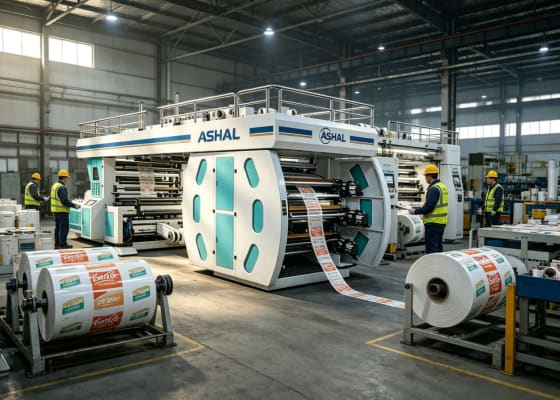

AI-6C · 6-colour

AI-6C Flexographic Printing Machine — 500 to 2000 mm

6-colour full servo press, up to 260 m/min, ±0.1 mm registration.

AI-6C-500AI-6C-800AI-6C-1000AI-6C-1200AI-6C-1500AI-6C-1800AI-6C-2000

Specification	AI-6C-500	AI-6C-800	AI-6C-1000	AI-6C-1200	AI-6C-1500	AI-6C-1800	AI-6C-2000
Printing Colours	6	6	6	6	6	6	6
Max Web Width	500mm	800mm	1000mm	1200mm	1500mm	1800mm	2000mm
Max Printing Width	450mm	750mm	950mm	1150mm	1450mm	1750mm	1950mm
Repeat Length Range	190–800mm	190–1000mm	190–1000mm	190–1200mm	300–1200mm	300–1600mm	300–1600mm
Max Mechanical Speed	260m/min	260m/min	260m/min	260m/min	221m/min	221m/min	182m/min
Registration Accuracy	±0.1mm	±0.1mm	±0.1mm	±0.1mm	±0.1mm	±0.1mm	±0.1mm
Drive System	Full Servo Gearless	Full Servo Gearless	Full Servo Gearless	Full Servo Gearless	Full Servo Gearless	Full Servo Gearless	Full Servo Gearless
Anilox Roller	Ceramic, 200–600 LPI	Ceramic, 200–600 LPI	Ceramic, 200–600 LPI	Ceramic, 200–600 LPI	Ceramic, 200–600 LPI	Ceramic, 200–600 LPI	Ceramic, 200–600 LPI
Max Unwind/Rewind Dia.	Φ600mm	Φ600mm	Φ800mm	Φ800mm	Φ1000mm	Φ1000mm	Φ1200mm
Machine Weight	~3800kg	~4370kg	~4750kg	~5130kg	~6650kg	~7980kg	~9500kg
Dimensions (L×W×H)	4200×1600×2400mm	4830×1839×2400mm	5250×2000×2400mm	5670×2160×2400mm	7350×2800×2400mm	8820×3360×2400mm	10500×4000×2400mm

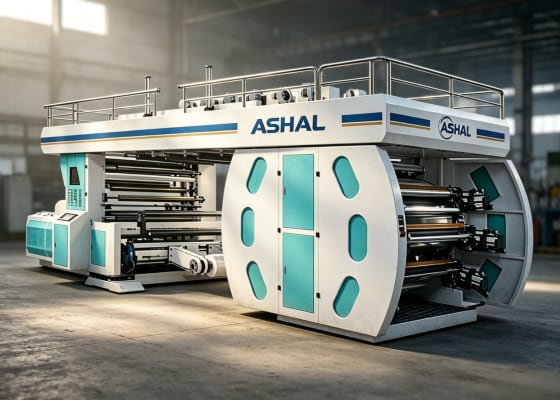

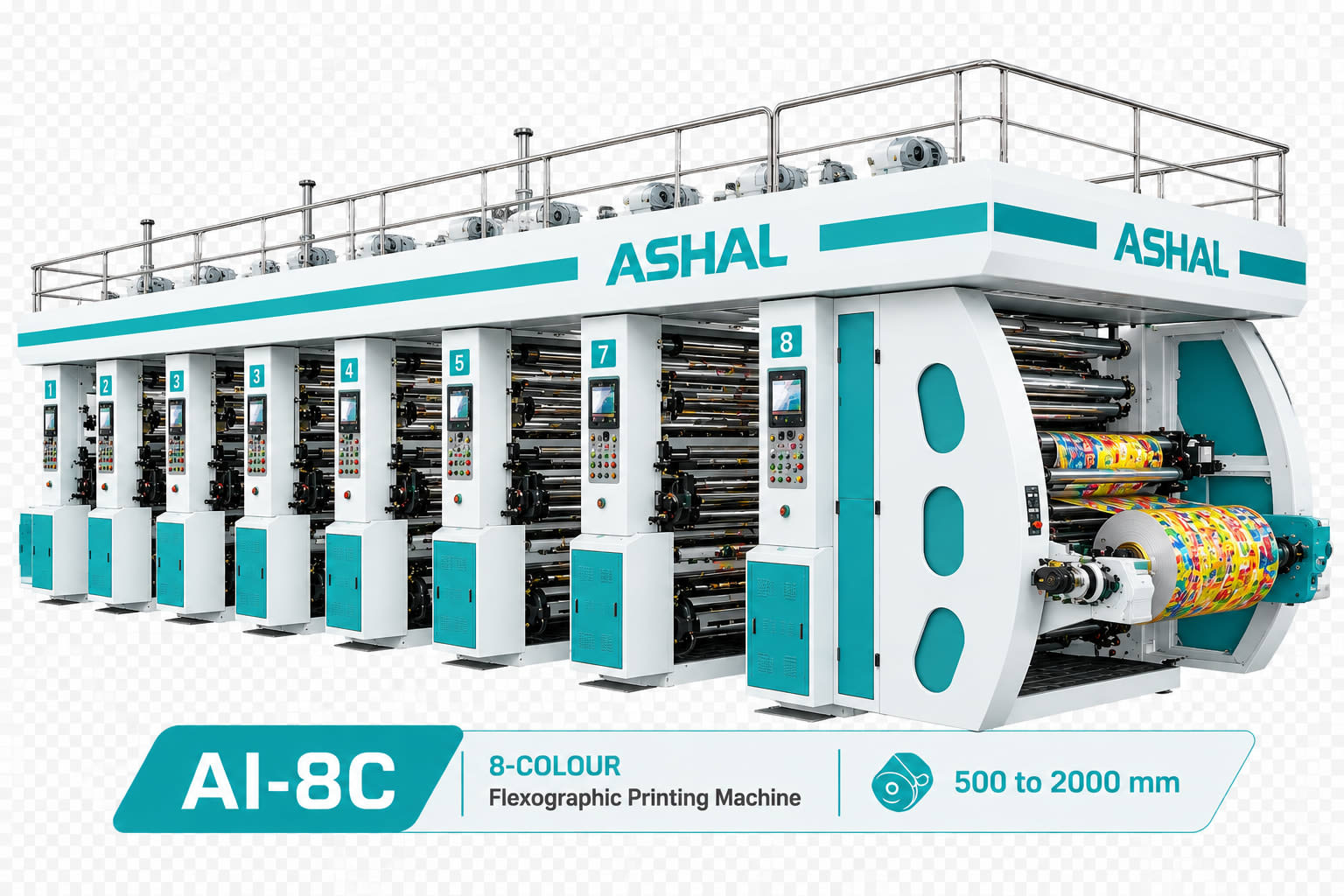

AI-8C · 8-colour

AI-8C Flexographic Printing Machine — 500 to 2000 mm

Flagship 8-colour full servo press, up to 350 m/min, ±0.1 mm registration.

AI-8C-500AI-8C-800AI-8C-1000AI-8C-1200AI-8C-1500AI-8C-1800AI-8C-2000

Specification	AI-8C-500	AI-8C-800	AI-8C-1000	AI-8C-1200	AI-8C-1500	AI-8C-1800	AI-8C-2000
Printing Colours	8	8	8	8	8	8	8
Max Web Width	500mm	800mm	1000mm	1200mm	1500mm	1800mm	2000mm
Max Printing Width	450mm	750mm	950mm	1150mm	1450mm	1750mm	1950mm
Repeat Length Range	190–800mm	190–1000mm	190–1000mm	190–1200mm	300–1200mm	300–1600mm	300–1600mm
Max Mechanical Speed	350m/min	350m/min	350m/min	350m/min	297m/min	297m/min	244m/min
Registration Accuracy	±0.1mm	±0.1mm	±0.1mm	±0.1mm	±0.1mm	±0.1mm	±0.1mm
Drive System	Full Servo Gearless	Full Servo Gearless	Full Servo Gearless	Full Servo Gearless	Full Servo Gearless	Full Servo Gearless	Full Servo Gearless
Anilox Roller	Ceramic, 200–600 LPI	Ceramic, 200–600 LPI	Ceramic, 200–600 LPI	Ceramic, 200–600 LPI	Ceramic, 200–600 LPI	Ceramic, 200–600 LPI	Ceramic, 200–600 LPI
Max Unwind/Rewind Dia.	Φ600mm	Φ600mm	Φ800mm	Φ800mm	Φ1000mm	Φ1000mm	Φ1200mm
Machine Weight	~4800kg	~5520kg	~6000kg	~6480kg	~8400kg	~10080kg	~12000kg
Dimensions (L×W×H)	5200×1600×2600mm	5979×1839×2600mm	6500×2000×2600mm	7020×2160×2600mm	9100×2800×2600mm	10920×3360×2600mm	13000×4000×2600mm

Substrate compatibility

Prints on virtually
any flexible substrate

Ceramic anilox rollers at 200–600 LPI deliver consistent ink transfer across thin film, paper and woven materials. Independent IR drying per colour station prevents back-bleed.

Talk to a print specialist →

PE Film

PP Film

PET Film

NY (Nylon)

BOPP Film

CPP Film

Kraft Paper

Non-woven Fabric

Corrugated Paper

Metalised Film
